Demonstrate SoliJet DT series desktop inkjet coding printer: (Please note that the footswitch, photoelectric switch, and position panel are optional accessories.)
Inkjet coding batch number on the metal: (Please note that the footswitch, photoelectric switch, and position panel are optional accessories.)
Coding on plastic bottle SoliJet DT series desktop inkjet coder:
Inkjet coding on stepper motor SoliJet DT series desktop inkjet coder:
Click here to watch more videos about SoliJet DT series desktop inkjet coding machine.
Best Use Scenario:
Inkjet Coding Area:

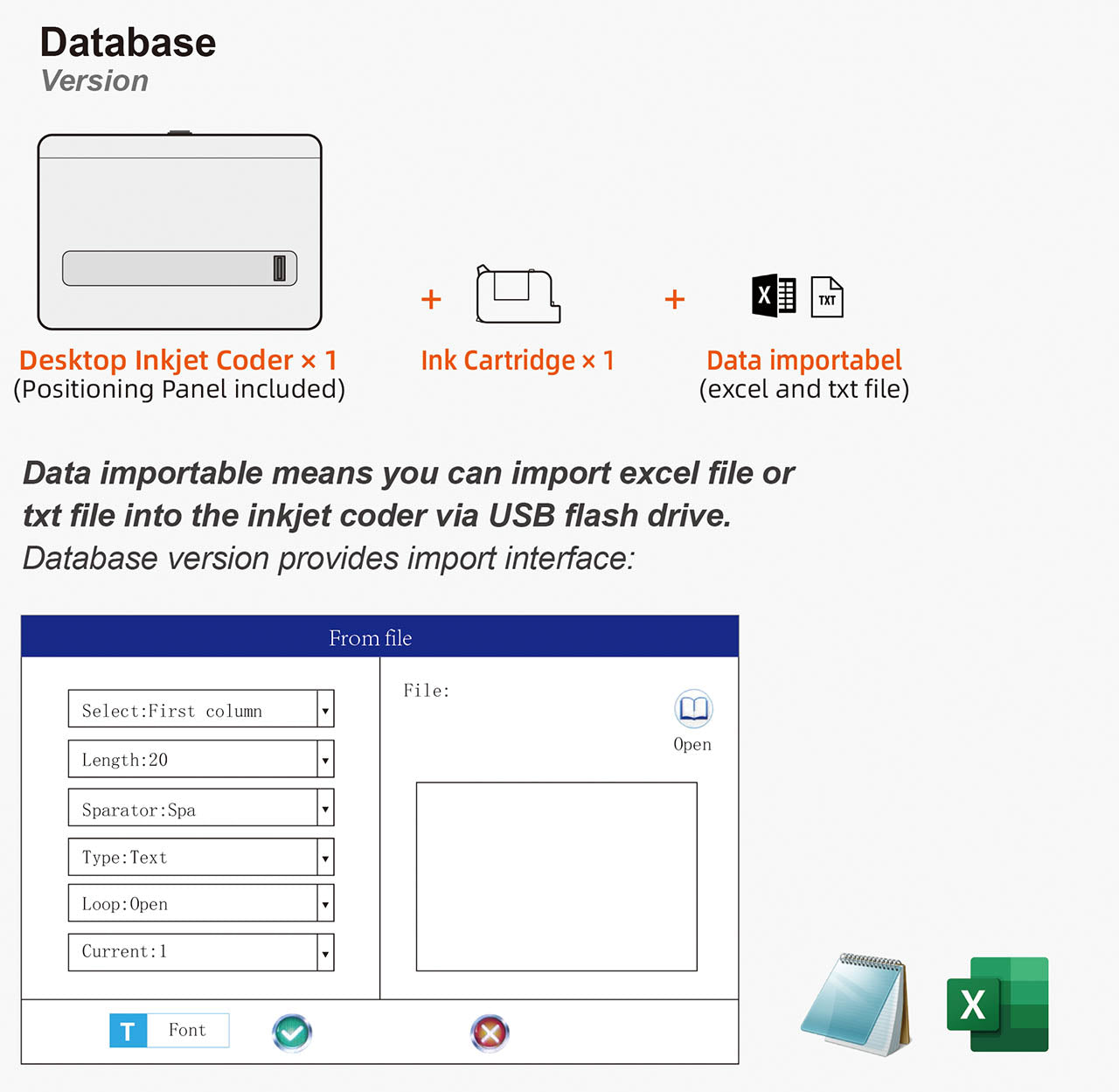

What are the differences between the four versions?
Optional accessories to significantly improve the inkjet coding efficiency: Footswitch, Photoelectric switch, and Position panel
- Optional adjustable positioning accessory: Position Panel
- Optional coding trigger accessory: Footswitch
SoliJet DT127 desktop inkjet barcode coding machine utilizes HP thermal inkjet technology:
- The cartridge and print head are all-in-one piece designs.
- Every time you replace the cartridge, you replace it with a new print head.
- No maintenance is needed.
SoliJet DT127 desktop inkjet coding height: 0.5 inch (12.7 mm)
Nozzles in the print head:
There are 300 nozzles in the print head, all these 300 nozzles bring high-resolution performance and enable minimal character height to 1.2 mm.
File transfer mode: USB flash drive.
You can import images via USB flash drive, so you can easily print your logo or signs.
SoliJet DT127 desktop inkjet coding machine supports monochrome bitmaps in BMP format and the bitmaps should be 300 pixels in height.
There are 5 ink colors available: black, white, red, blue, and yellow.
It is worth mentioning that the white ink has a strong covering power, which is quite easy to get a clear mark on dark surfaces.
The DT127 desktop inkjet barcode coding machine is designed for wide applications and prints on almost any surface, we equipped the DT127 with water-based ink and eco-solvent ink.
The water-based ink is for printing on permeable materials like paper, wood, plasterboard, MDF, leather, etc.
The eco-solvent ink is for printing on non-permeable materials like metal, glass, ceramic, plastics, film-coated paper, etc.
The maximum distance between the printhead and object surface is 0.2 inches (5mm).
The DT127 desktop inkjet coding machine is capable of printing on rough surfaces like nonwovens.
The system language of SoliJet DT127 series is available in English and Chinese.
The software and hardware of the SoliJet DT series desktop inkjet coder have been through market validation and technology iteration of more than 4,000 customers in China mainland.
SoliJet DT127 weighs 6.61 lbs (3kg), device dimension 8.66×6.1×6.3 inches (220×155×160 mm), it's light and portable.
Inkjet Coding Samples:
DT127 Specification:
| Print Height | 12.7 mm | ||
| Print Length | 4.33 inches (110 mm) | ||
| Resolution | 300-600 dpi | ||
| Minimal Print Height | 1.2 mm | ||
| Nozzles | 300 nozzles | ||
| Software Function | Text, Counter, Real-time clock, Batch number, Serial number, Bar code, QR code, Flip font left and right | ||
| Pattern | Logo, Symbol, Warning icon, etc. | ||
| Dates | Century, Year, Month, Day, Hour, Minute, Second | ||
| Supported Materials | Permeable or non-permeable materials | ||
| Supported Ink Types |
Water-based ink, ECO-solvent ink |
||
| Ink Colors |
Black, Red, Blue, Yellow, White |
||
| Print Lines | 1-8 lines | ||
| Net Weight | 4.85 lbs ( 2.2kg )include ink cartridge, printer | ||
| Screen | 7 inches capacitive touchscreen | ||
| Processor | STM32 Processor | ||
| Connection | USB flash drive, Photoelectric (Optional), Footswitch (Optional) | ||
| Language | English, Chinese | ||
| Print Distance | 2~5mm from the surface | ||
| Pre-view | Pre-view via the color screen | ||
| Settings | Display all the parameters on the screen, change settings by screen touch | ||
| Cartridge Capacity | 42 ml | ||
| Power | 20W | ||
| Environmental Conditions | Temperature between 14~113℉ (or -10 to 45℃), humidity 30~70% | ||
| Printer Size | 11×6.88×8.66 inches (280×175×220mm) | ||
| Package Size | 12.2×10.2×10.2 inches (310×260×260mm) | ||
| Package Weight | 4kg |
